Geberit Delta UP100 Duofix Cistern Installation Frame

Geberit Delta Toilet Installation Frame Overview



1. Compatibility:

   • Works with all wall-hung toilets listed on the provided website.
   • Designed for the Delta flush plates range.
   • Data sheet

2. Cistern Specifics:

   • Can utilize rainwater if it has been filtered.
   • Adjustable flush volume for user preference.

3. Key Features:

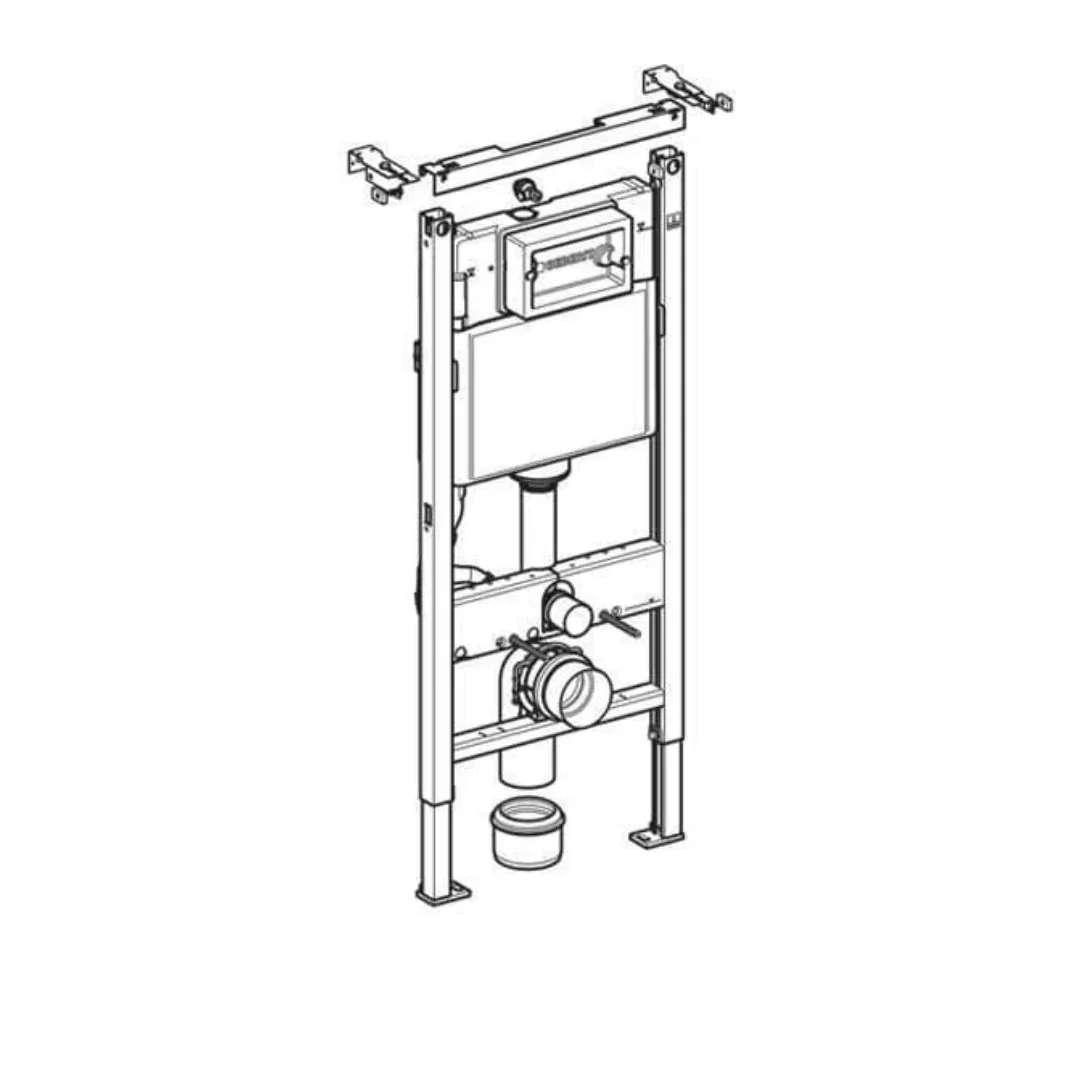

   • Concealed installation frame called UP100 is crucial for wall-hung toilets.
   • Cistern is at the front of the frame with anti-fog insulation.
   • Flush water volume is customizable.

4. Drywall Solutions:

   • Geberit Duofix offers diverse installation options.
   • Rails and studs help in setting up entire Geberit toilet system walls.
   • The visible part is only the flush button.

5. Geberit Duofix UP100 Attributes:

   • Supports up to 400kg.
   • Contains necessary accessories for setup.
   • Four fixing points for easy installation.
   • Compatible with Delta flush buttons.
   • Durable with a powder-coated frame.
   • Soundproofed outlet.
   • Thermal insulation.

6. Required for Complete Installation:

   • Geberit Duofix UP100 Frame.
   • Wall Hung toilet.
   • Flush Plates.
   • Wall Mounting Brackets (included).

7. Items Not Provided with UP100 Frame:

   • Geberit Flush Plate.
   • Wall Hung Toilet.

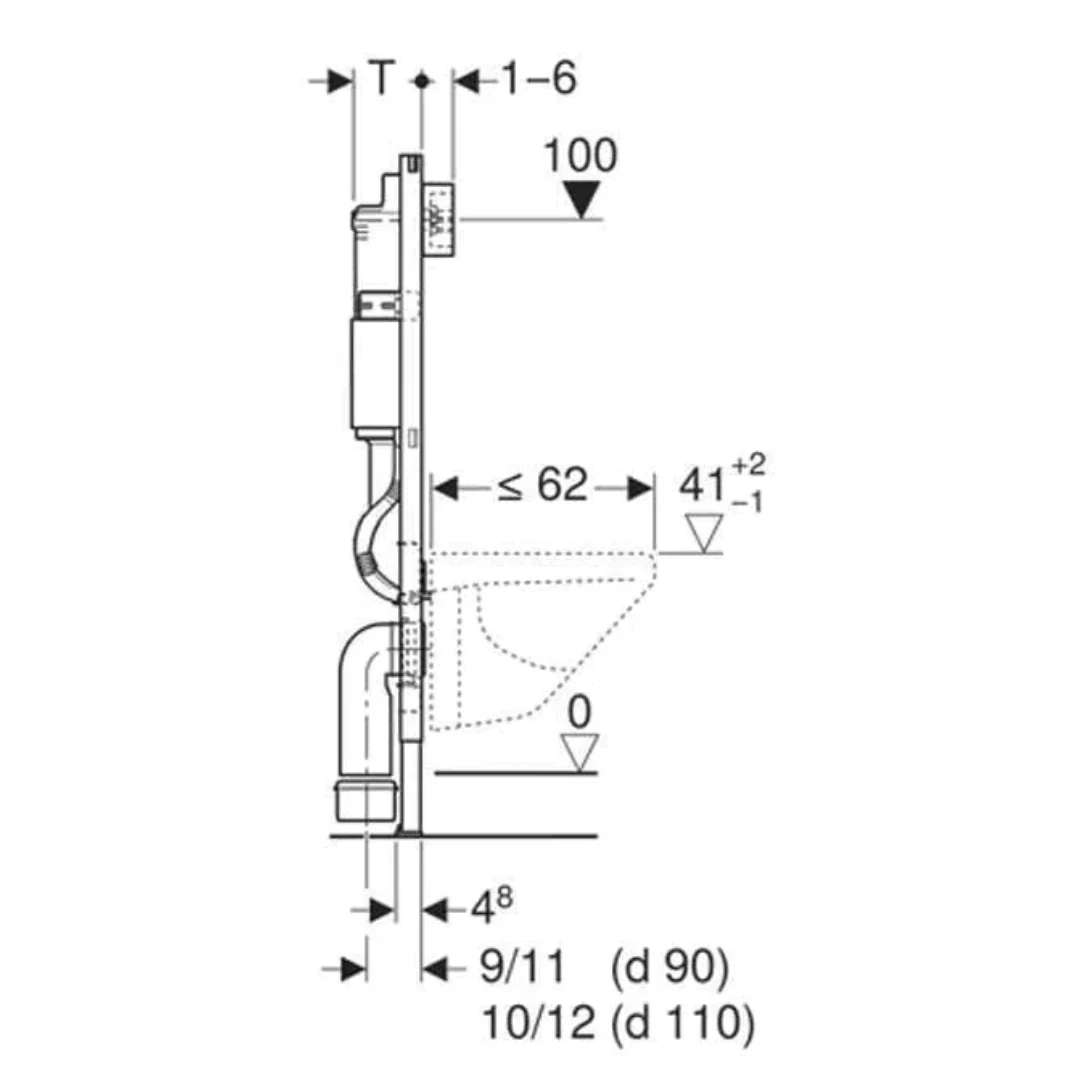

8. Dimensions and Details:

   • Product: Geberit Duofix UP100.
   • Brand: Geberit Toilet.
   • Size: Length (500mm), Width (350mm), Height (adjustable by 80mm).
   • Floor Construction: 0 - 200mm.
   • Ceramic Fixings: M12, Positioned at 180mm or 230mm.
   • Mounting Height: 1200mm.

9. About Geberit:

   • Renowned for innovations in sanitaryware.
   • Leading position in Europe and expanding globally.
   • Specializes in reliable and affordable wall hung toilets.

10. Geberit Wall Hung Toilet Frame:

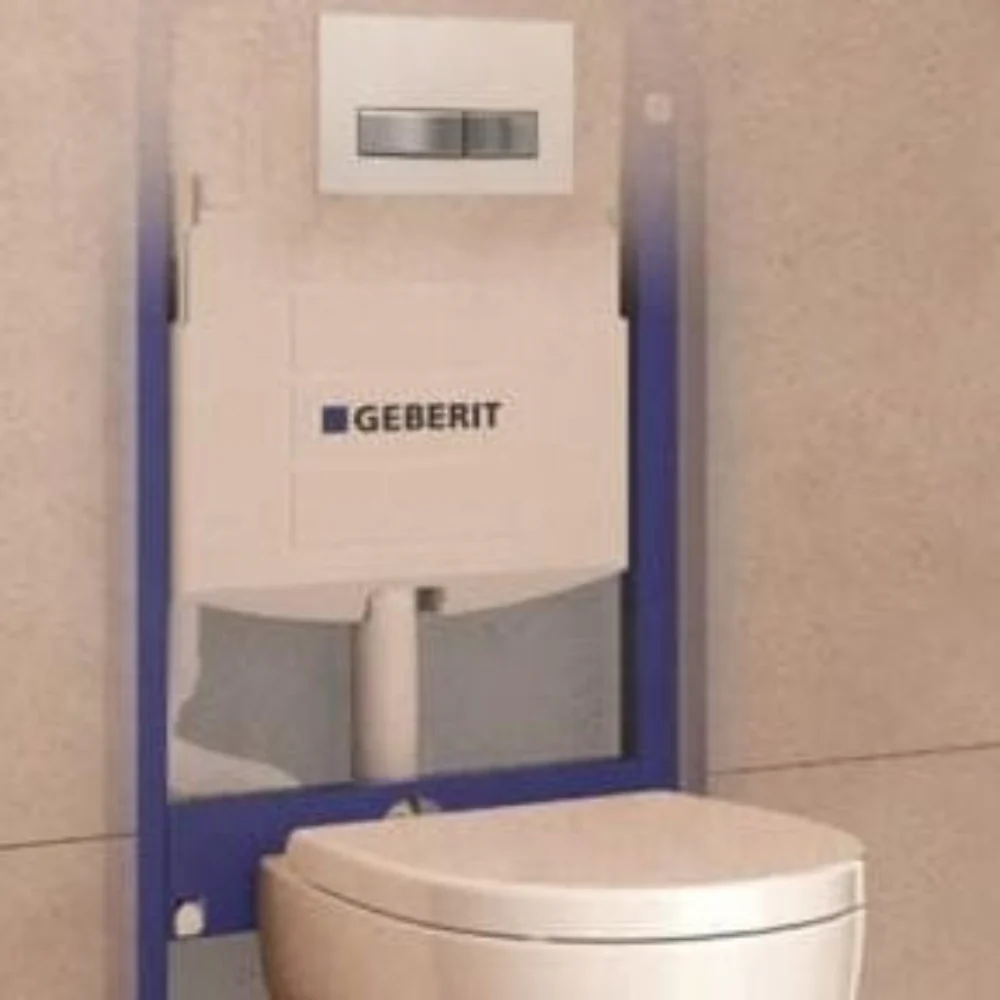

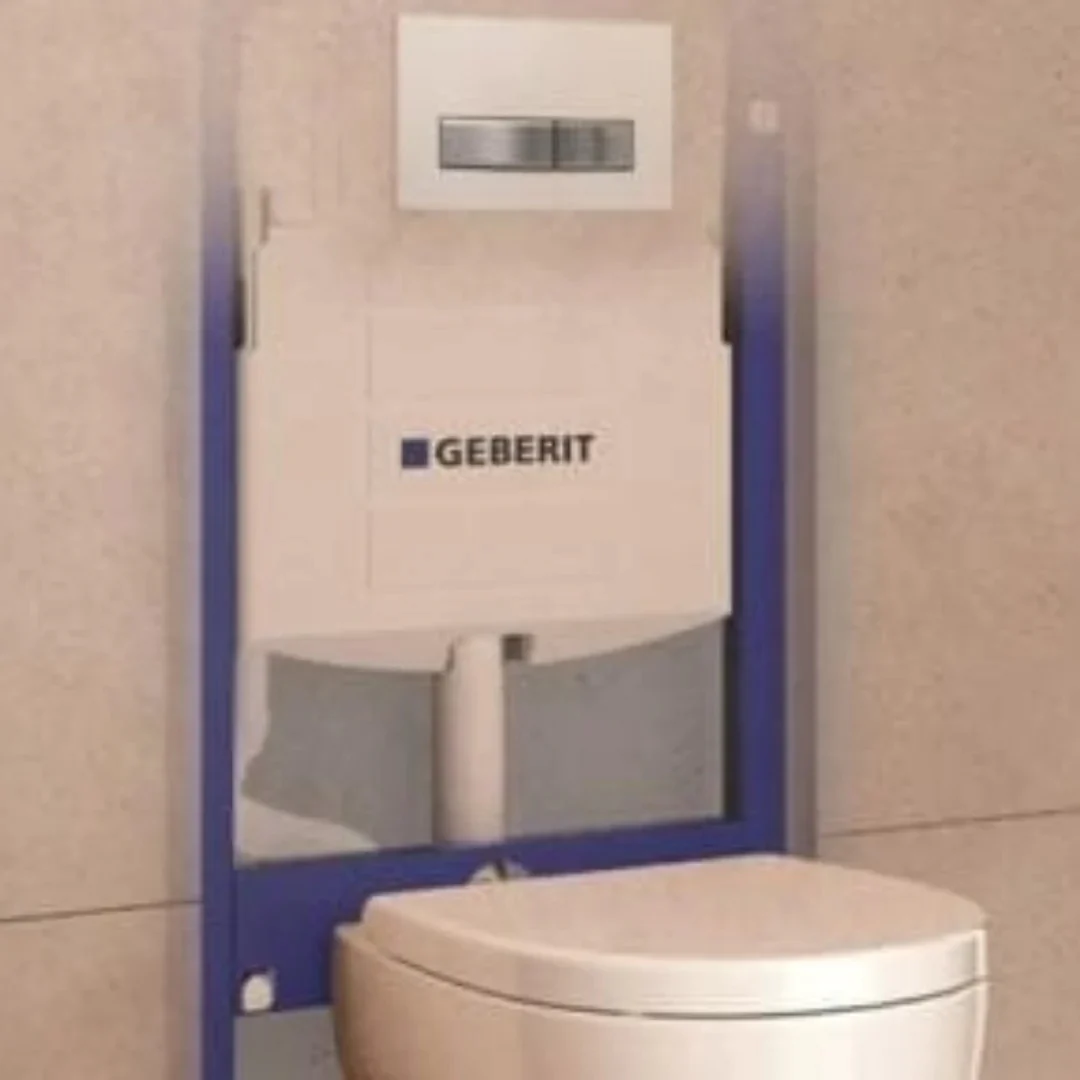

• Allows a sleek bathroom design.
• Conceals pipelines and screws.
• High-quality materials are used.
• Galvanized foot legs and a steel frame that can support up to 400KG.
• Versatile and suitable for any space.
• Ideal for dry wall installations.
• Meets sanitary ware standards and can be used with any wall hung toilet.
• The package includes an installation frame, water supply connection, flush bend, threaded rods for fixing points, and an integrated angle with hand wheel.
