Geberit Duofix Alpha Wc Frame 980, Concealed Cistern, Rectangular Plate Bracket and Acoustic Mat

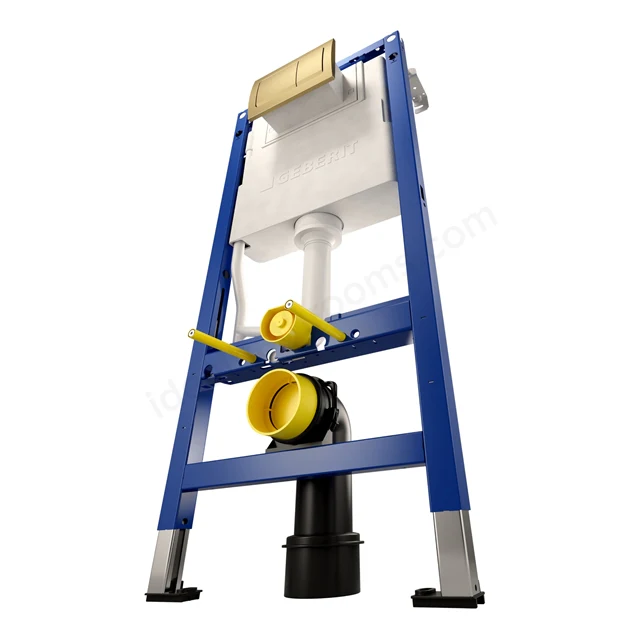

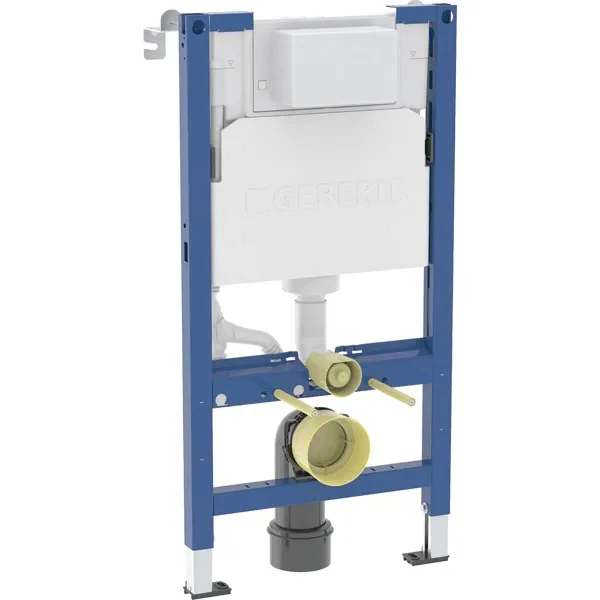

Geberit Duofix Alpha Wc Frame 980 Concealed Cistern with Brackets

Technical data

·         Flow pressure: 0.1-10 bar

·         Operating temperature, water max: 25 °C

·         Flush volume, factory setting: 5.8 / 3 l

·         Flush volume small, adjustment range: 3–4 l



Application purposes

·         For metal and woods frame walls

·         For installation in part or room height prewalls

·         For installation in room height partition walls

·         For floor construction 0-20cm



Characteristics

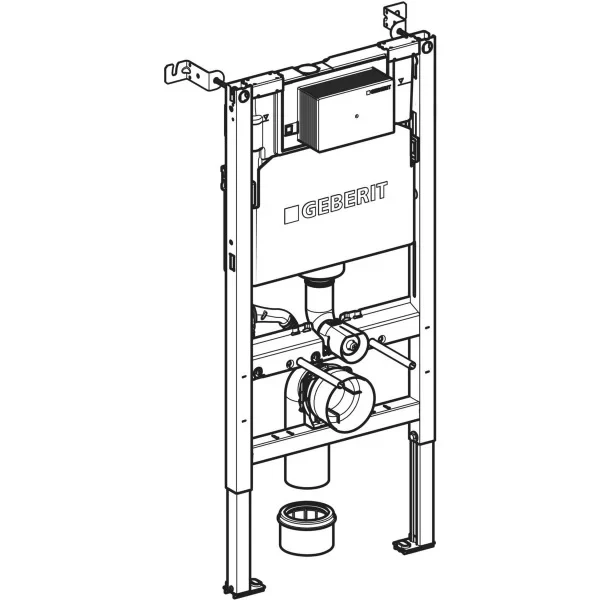

·         Statically self-supporting frame, protected against corrosion with powder coating

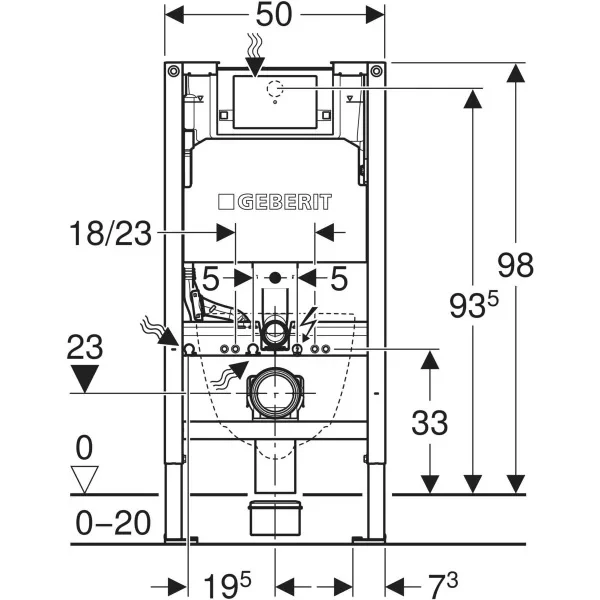

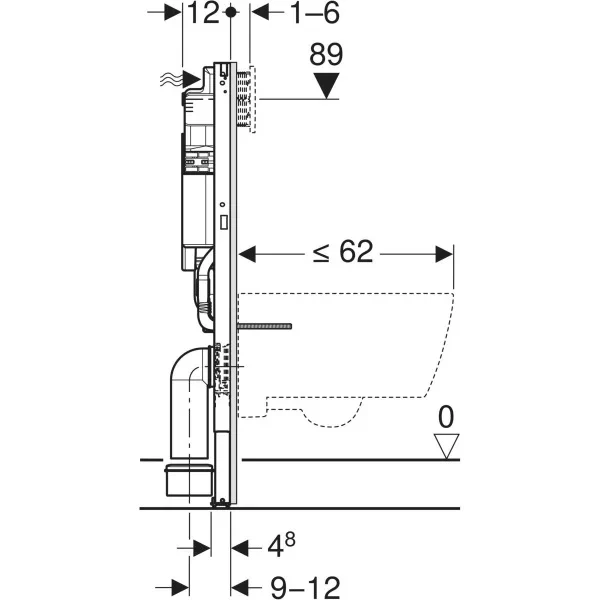

·         Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

·         Alternative fastening point for wall anchors

·         Foot plates made of plastic

·         Foot plate depth suitable for installation in U-profiles UW 50

·         Galvanised leg supports protected against corrosion

·         Connection bend can be mounted without tools

·         Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·         Cistern fulfils standard requirements in accordance with EN 14055, Class II

·         For front actuation, suitable for dual flush

·         Immediate post flush possible with factory setting

·         Water supply connection on the rear or top centre

·         Protection box for service opening, can be cut to length, protects against moisture and dirt

·         With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

·         Fastening option for electrical connection



Scope of delivery

·         Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

·         Protection box for service opening

·         2 wall anchors

·         2 fixing brackets

·         Connection set for WC, ø 90 mm

·         Connection bend 90° made of PE-HD, ø 90 mm

·         Adaptor socket made of PE-HD, ø 90 / 110 mm

·         Fastening and protection material

Acoustic mat Included

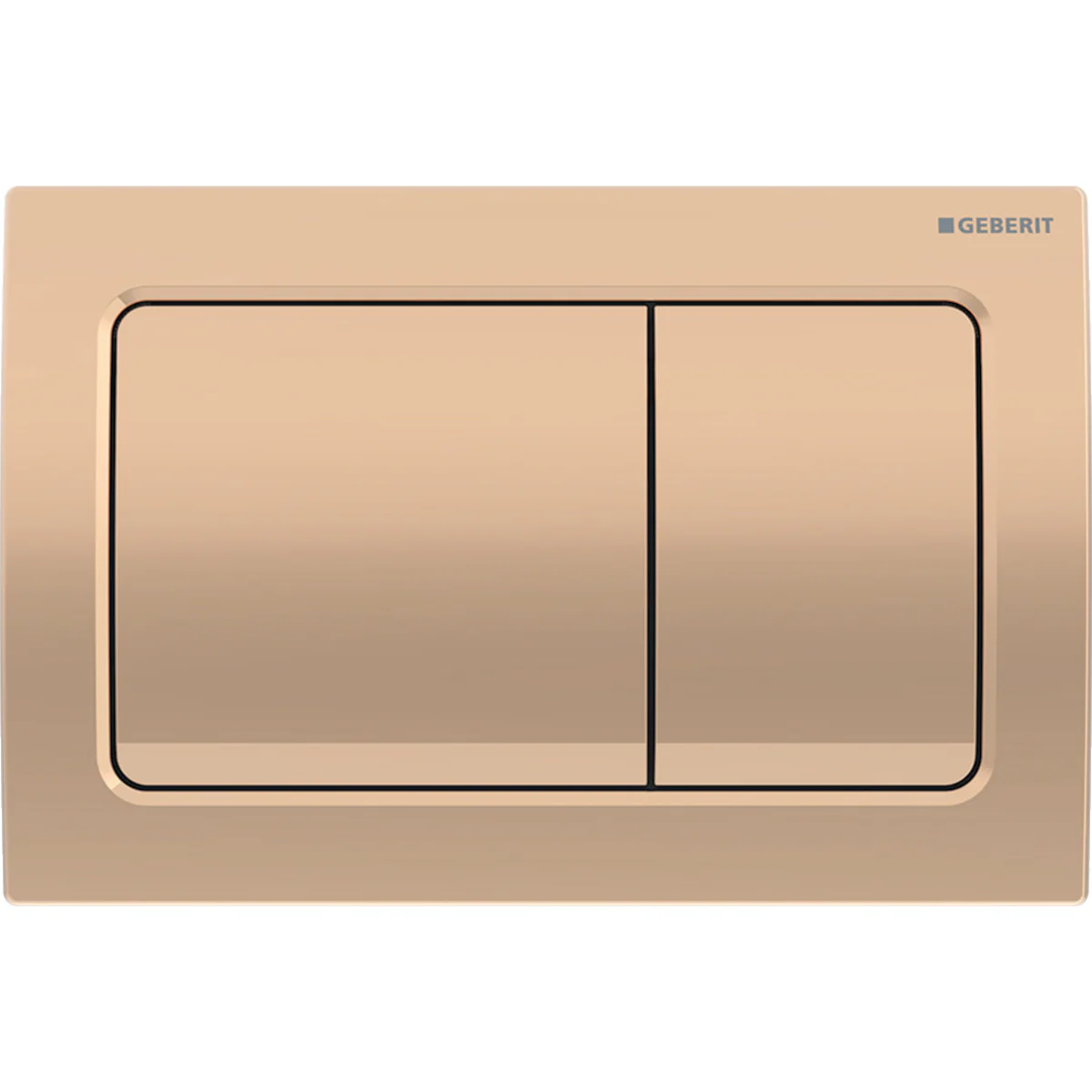

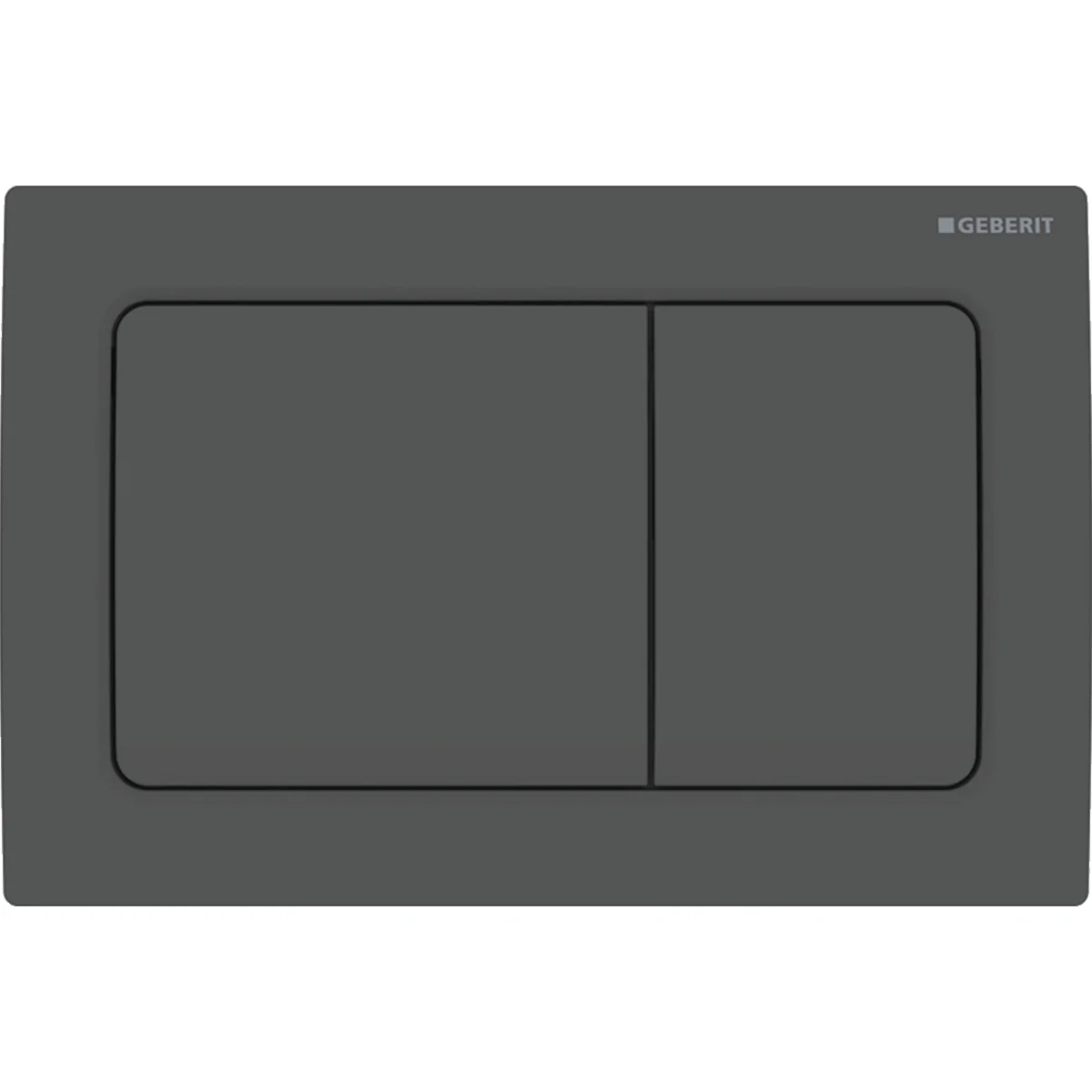

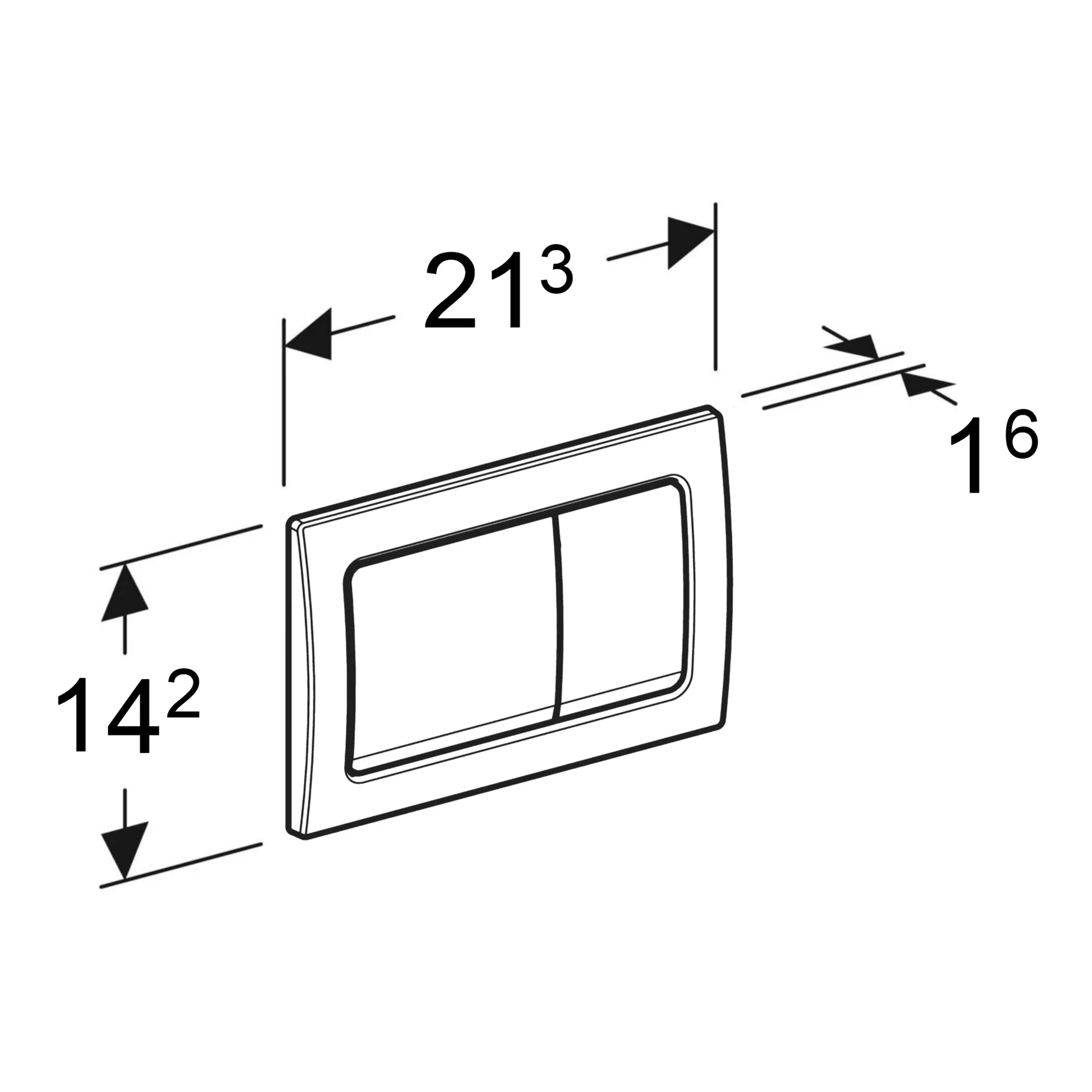

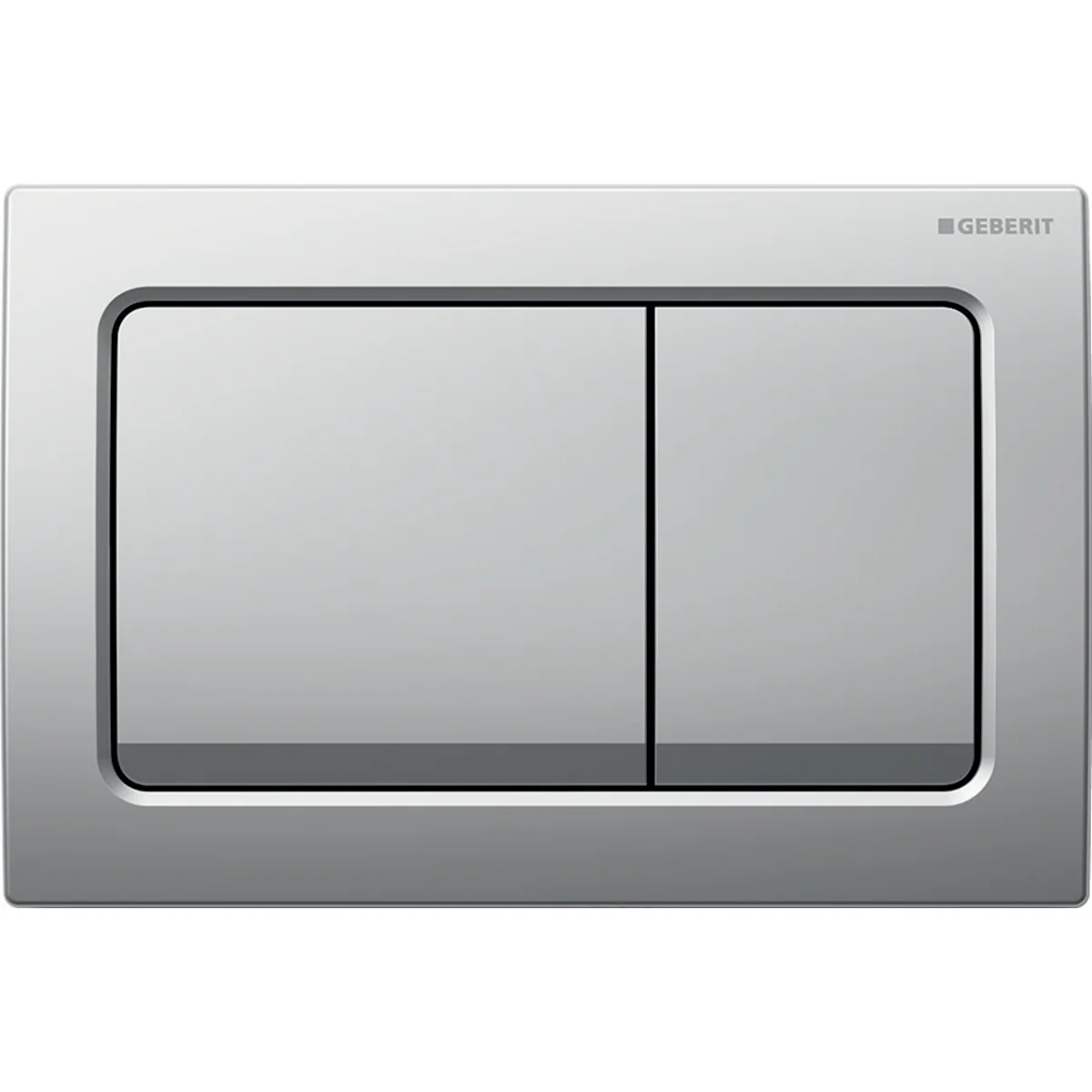

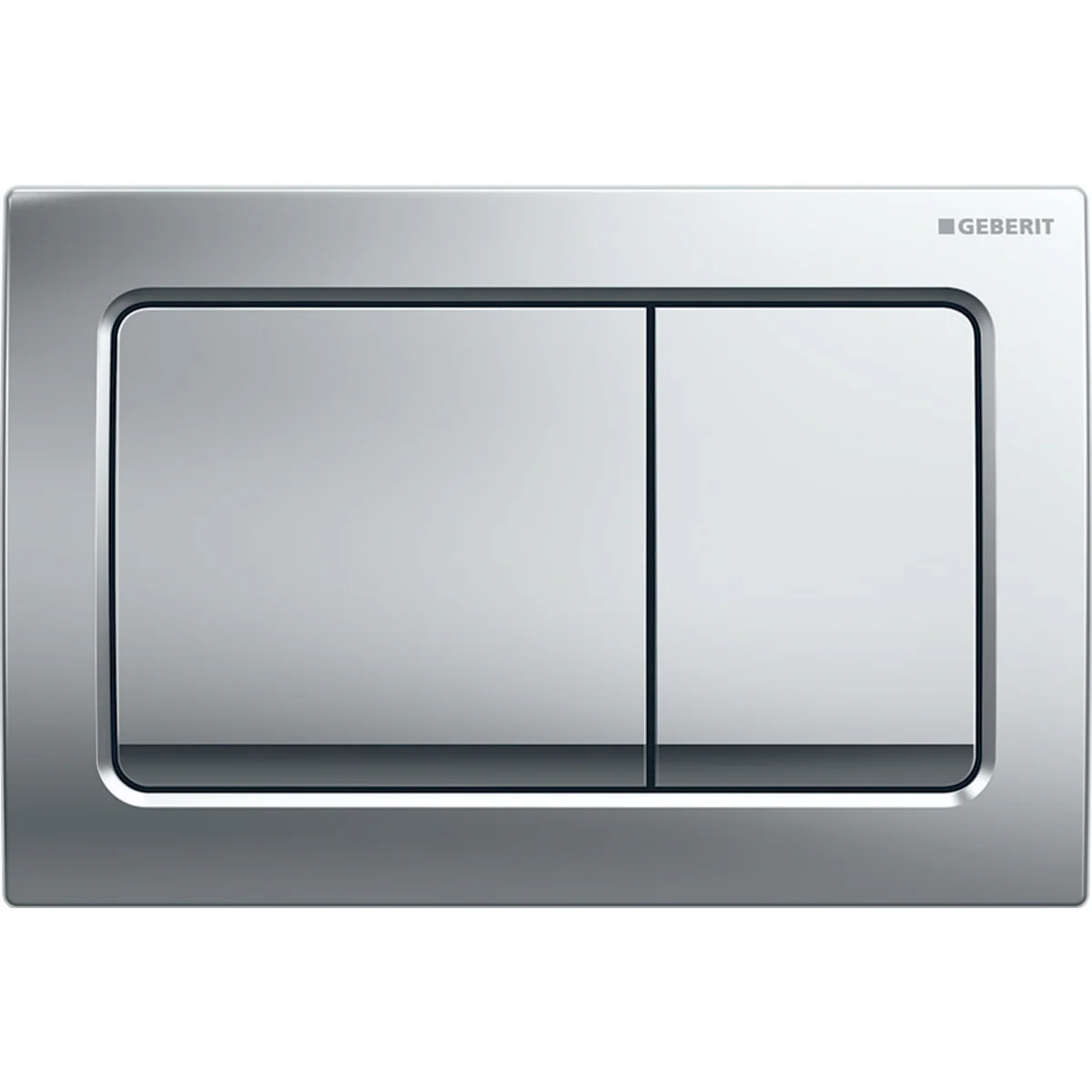

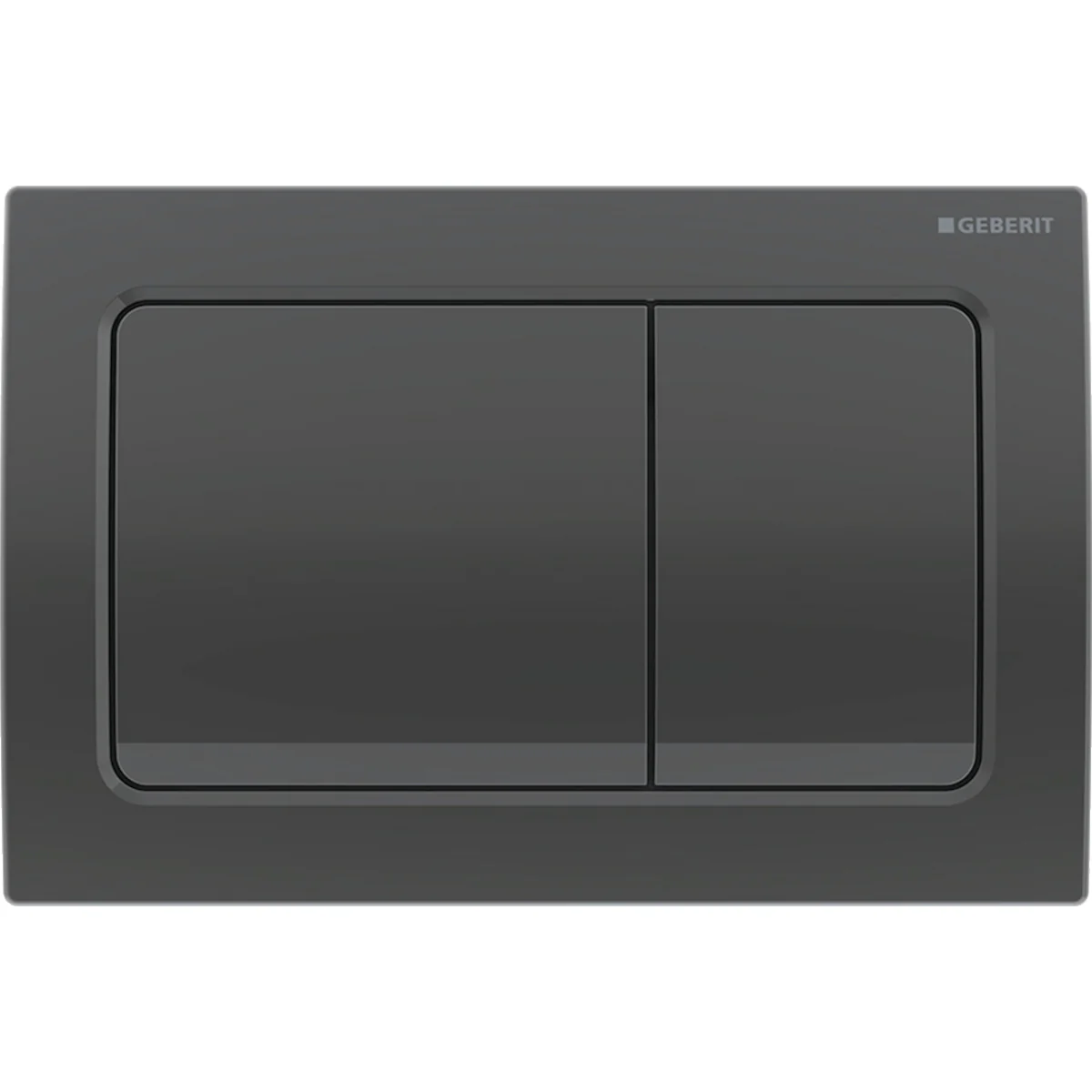

 Geberit Alpha flush plate

·       Actuation force max – 20 N

·       Button shape – square

·       For flush actuation with Alpha concealed cisterns ONLY

·       Top/front actuation

·       2 actuator rods
